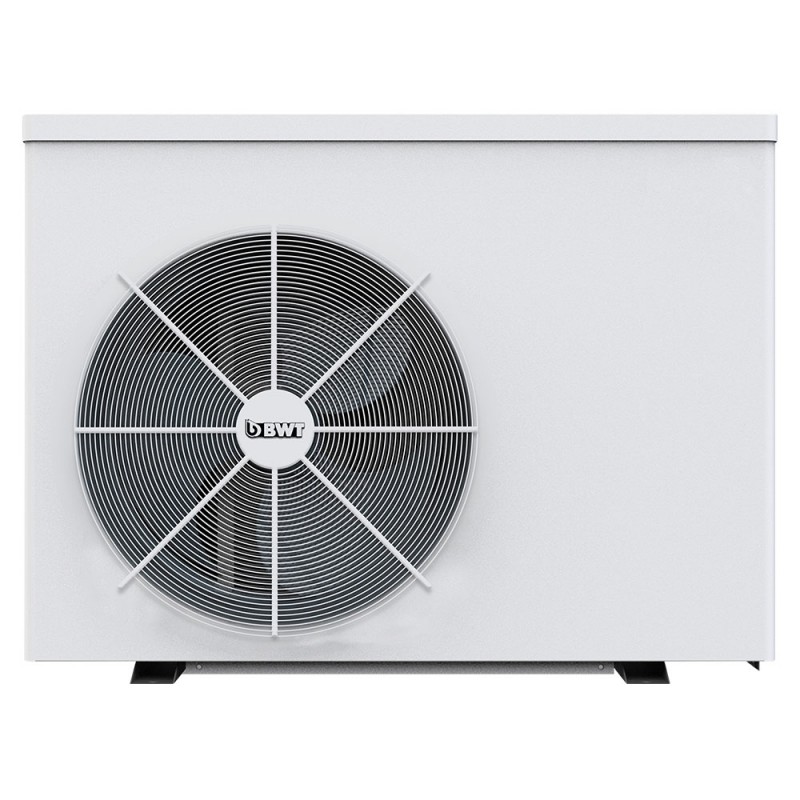

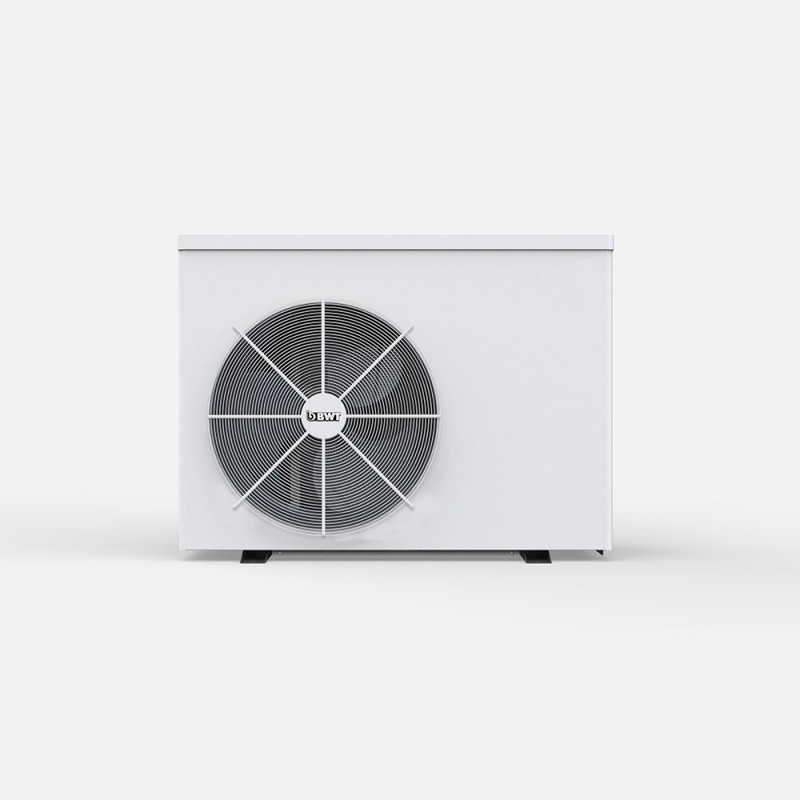

BWT myPOOL Inverter 12.5kw heat pump

BWT myPOOL Inverter 12.5kw heat pump.
BWT myPOOL Inverter 12.5kw heat pump. is dedicated to swimming pools of 30 to 55 m3.

A scalable and efficient system.
The BWT myPOOL Inverter heat pump works with an Inverter compressor that can vary from 20 to 100% of its power, depending on operating conditions and outside temperature. The BWT myPOOL Inverter heat pump collects calories from the ambient air and transfers them to your pool water. They also provide an average C.O.P. of 9 under the following operating conditions: Air 26oC, Water 26C, Humidity 80%.

Efficiency at a shock price!
At the beginning of the season, when the demand for heating is high, the Inverter compressor and fan will operate at high speed (around 100%). As you approach the set point, the Inverter compressor will reduce its power and use its operating ranges at low speeds. This mode of operation greatly promotes energy savings and generates a low noise level compared to that of a traditional "On/Off" machine, which will delight the user, and often the neighbors!
In addition, the BWT myPOOL Inverter heat pump operates at air temperatures of 0 to 35 degrees Celsius (depending on humidity) and thus extends the swimming pool season.

Digital regulation
The high and low pressure controllers, the water flow switch, the cycle inversion de-icing system and the 5 temperature sensors are controlled by a digital regulator that provides optimal heat pump protection and precise control of the pool temperature.

Body
The body of the BWT myPOOL Inverter heat pumps is galvanized steel, coated with polymer protection, this anti-corrosion protection is more durable and more effective.

Accessories included
Insulated wintering cover
Anti-vibration support kit
PVC connectors 50 mm diameter
Condensate evacuation pipe
Maintenance box including multi-language user manual.

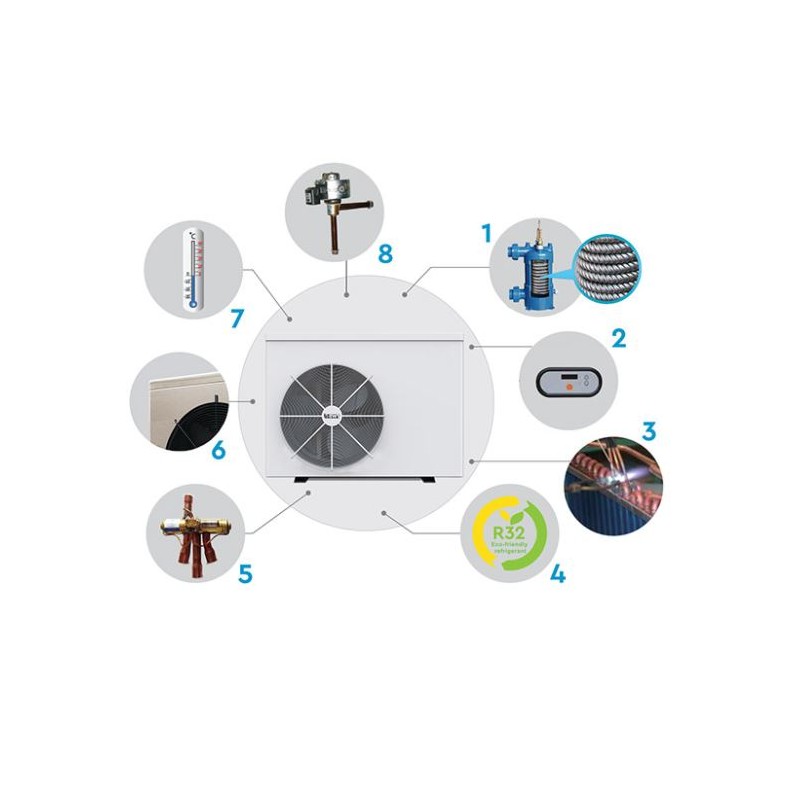

Characteristics
GMCC compressor,
Magnetic flow switch; it allows total insulation between water and electricity,
Evaporater treated "Blue Fin."
Titanium Interchange: A twisted titanium coil equips the heat pump interchange.
Digital controller
Silver weldingAll copper tubes fitted to heat pumps are welded to silver. This welding technique avoids the risks associated with gas leaks.
Green R32 gas
4-voice valve: Cycle inversion defrosting.
Bodywork: Galvanized steel.
How it works from 0°
HP-BOOSTER Technology
Achieves a 20% higher COP than the traditional HP On/Off market.

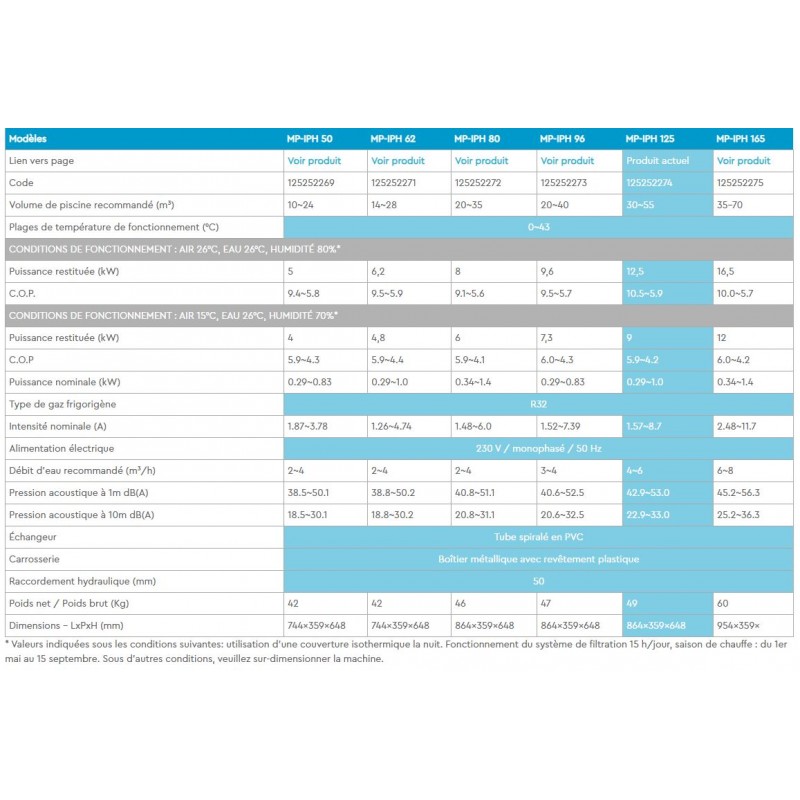

Specifications:
Model: BWT myPOOL Inverter 8kw
Basin volume (m3): 30-55 m3
Air 26oC / Water 26oC / Hydro 80%
Capacity (W): 10.5-10.9
Power Consumed (W): 1.09-0.105
COP: 10.5-5.9
Air 15oC / Water 26oC / Hydro 80%
Capacity (W): 9
Power (W): 12.5 kw
COP: 5.9-4.2
Power: Mono 220V-240V/50Hz
Max Power (W): 1570
Max Intensity (A): 1.57-8.7
Heating temperature range: 15C / 40C
Operating range: 0C / 43C
Function: Heating/ Cooling
Flow (m3/h): 4.6
Refrigerator: R32
Dimensions (mm): 864×359×648
Weight (kg): 49
Acoustic pressure at 1 m (dB): 42.9-53
Acoustic pressure at 10 m (dB): 22.9-33.0
Hydraulic connection: 50mm
Interchange: Twisted titanium coil equips the heat pump interchange.
Function: Heating
Losses in charge (mCE): 1.1
2-year warranty

Values indicated under the following conditions: use of an insulated blanket at night. 3 p.m./day filtration system, heating season: May 1 to September 15. Under other conditions, please over-size the machine.
