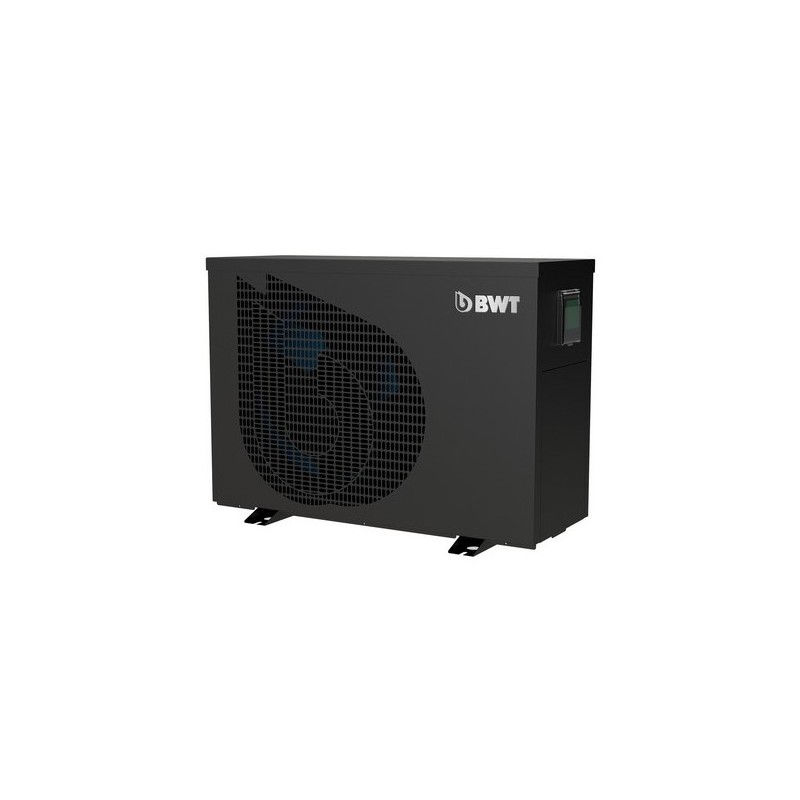

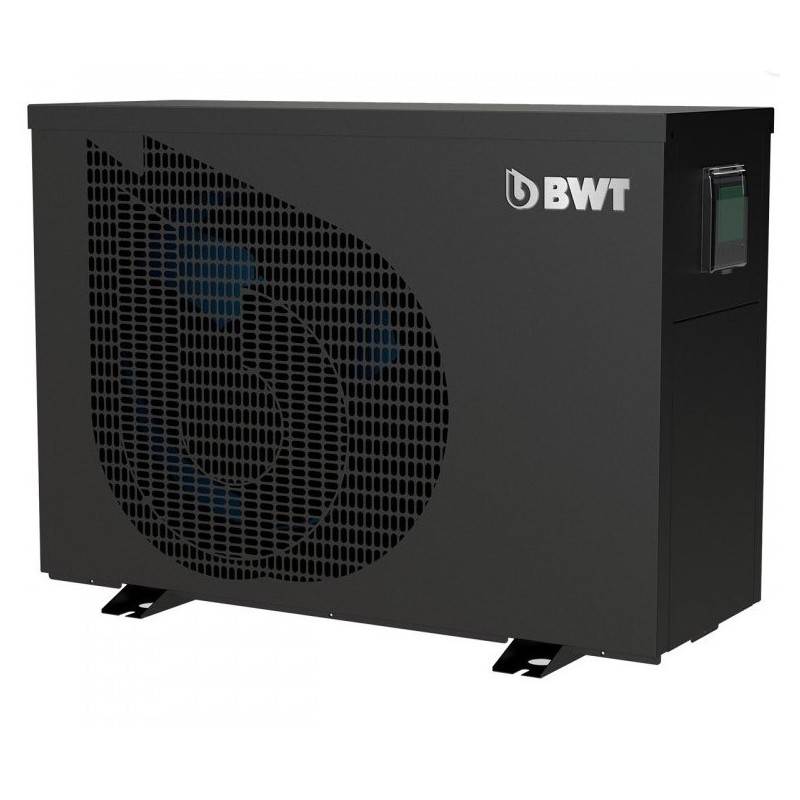

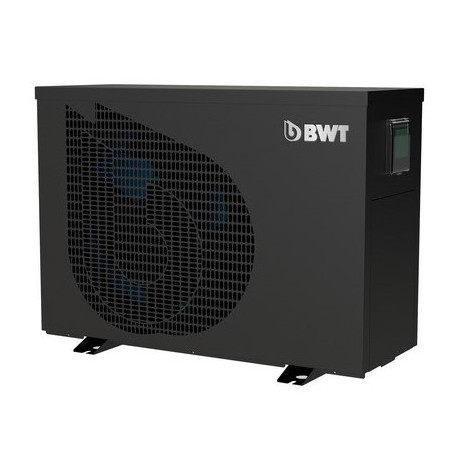

BWT Inverter 9kW Connected Heat Pump for Swimming Pool 30 to 45m3 IC89

BWT Inverter 9kW Connected Heat Pump for Swimming Pool 30 to 45m3 IC89.
The BWT 9kW Inverter Connect reversible heat pump optimizes its power
automatically to ensure the best performance and obtain one of the levels
the lowest sound in its class.
The BWT Pioneer Inverter range offers a wide range of powers to equip pools from 15 to 100 m3 and works only in heating mode.

Inverter IC89 BWT heat pump:
The intelligent connected heat pump.
The BWT Inverter heat pump range offers you a wide choice of models equipped with inverter technology.

• Maximum power: 8.9 kW
• Full Inverter Technology
• Recommended pool volume: 30 to 45 m³
• Recommended water flow: 4 m³/h
• Titanium spiral heat exchanger
• Compressor: 2D Full DC Inverter
• Regulator: electronic
• Exchanger: Spiral titanium
• Body: Metal
• Epoxy paint
• Refrigerant: R32 (ecological).

Technology Heat pump IC89 BWT FULL INVERTER,
Model: 8.9 kW.
BWT design metal body & intuitive digital screen,
COP improved by 20 to 30 %,
3 intuitive modes: Max, Eco and Silent,

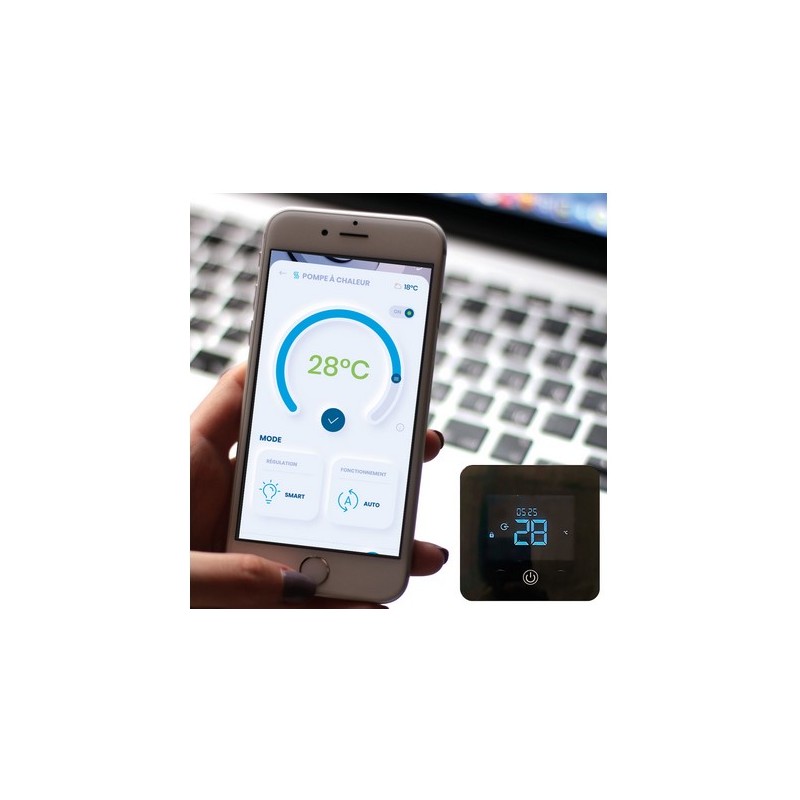

Compatible with the Smartphone application,
Warranty 3 years or 5 years if PAC permanently connected to WIFI
and registered on the dedicated App,
Hydraulic fittings, Wintering cover, silent Blocks, evacuation kit
condensate included.

The inverter system of BWT heat pumps.
The compressor of inverter heat pumps can vary from 25% to 100% of its power depending on operating conditions and outside temperature, unlike traditional heat pumps that operate at constant speed (100%).
The BWT Inverter heat pump Works 3 choices of heating mode: low, medium and high. Once the mode is selected and depending on the outside temperature, the Pionner Inverter BWT heat pump will automatically speed its compressor.

Benefits.
Works at air temperatures from 0°C to 35°C (depending on humidity) and thus extends the season of use of the pool. Inverter heat pumps also provide an average C.O.P. of 9 under the following operating conditions: Air 26°C, Water 26°C, Humidity 80%*.

Digital regulator.
The high and low pressure controllers, the water shortage safety (flow switch), the cycle reversal defrost system and the 5 temperature probes, are controlled by a digital controller that ensures optimal protection of the heat pump and precise control of the pool temperature.

Body of the BWT Inverter heat pump.
The body of BWT heat pumps is made of galvanized steel, coated with polymer protection, this corrosion protection is more durable and effective.

Be quiet
Thanks to its exclusive intelligent control system, the BWT Inverter Connect heat pump regulates its power according to the temperature of the water but also according to the ambient temperature in order to always ensure the right bathing temperature, a high-performance COP* and a very low noise level.
This argument is particularly important in the event that the heat pump must be installed at a distance from the neighbors. To this end, the attention of installers is drawn to the provisions of Decree No. 2006-1099 of 31 August 2006 on combating neighbourhood noise and amending the Public Health Code (regulatory provisions).

Features of the BWT IC89 Inverter heat pump:
Refrigerant: R32
Recommended pool size (May to September with tarpaulin)
Recommended pool volume (m3): 30~45
Operating temperature range: 0~38
Heating power: Air at 28 °C, Water at 28 °C
Power restored in MAX mode (kW) : 8.9
C.O.P mode MAX: 6.8~5.8
Power returned Eco mode (kW) 8.9~3.2 kW
C.O.P in ECO mode: 10.2~5.8
Power returned Silent mode (kW) 5.4~3.2kW
COP Silent (kW) 10.2~7.9
Certified heating power: Air at 15°C, Water at 26°C
Power returned to MAX mode (in kW): 7.0
C.O.P mode MAX: 4.8~4.3
Power returned Eco mode (kW) C.O.P at 50% speed: 6.5~3.0kW
COP Eco mode:6.4~4.3
Power returned Silent mode (kW) 3.6~3.0kW
COP Silent (kW) 6.4~5.3
Rated power (kW): 1.1
Nominal input current (A): 4.5A
Input MAX current (A): 7.5A
Protection and cable size (for 20 m) (mm2): C 10 A (3G2.5 mm²)
Voltage: 230 V /1~+N / 50 Hz
Recommended water flow: 4 m3/h
Sound pressure at 1 m dB (A): 40.6 / 52.5
Sound pressure of 50% of capacity at 1m dB (A): 45.8
Sound pressure at 10 m dB (A): 20.6 / 32.5
Exchanger: Titanium spiral tube
Body: Metal housing with plastic coating
Max absobic power (Air 26°C): 1.1 kW
Water pressure losses: 64 KPa
Maximum input current (A): 9.5
Hydraulic connection (mm) : 50
Dimensions (WxDxH): 830 x 300 x 500
Compressor: 2D Full DC Inverter
Regulator: Electronic
Body :Metal epoxy paint
Net weight / Gross weight (kg): 43.

Warranty of the BWT Inverter heat pump.
Heat pump: 3-year warranty.

The BWT range heat pump Inverter offers a wide choice of powers to equip pools from 15 to 100 m3 and works only in heating mode.
In version of 5 models : 6.8kW, 8.9 kW, 12.5 kW, 14.2 kW, 18.2 kW.
